Description

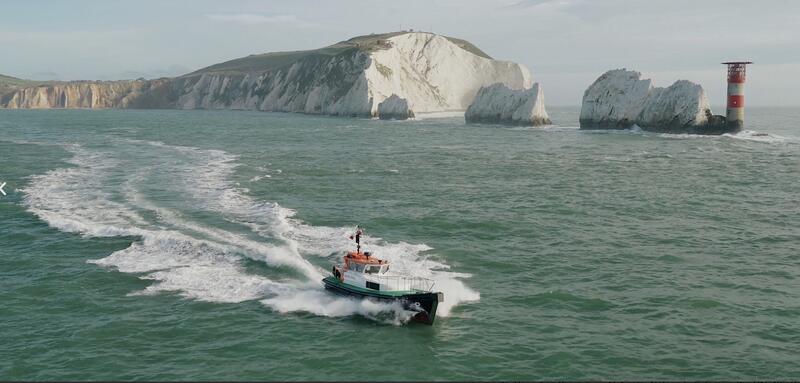

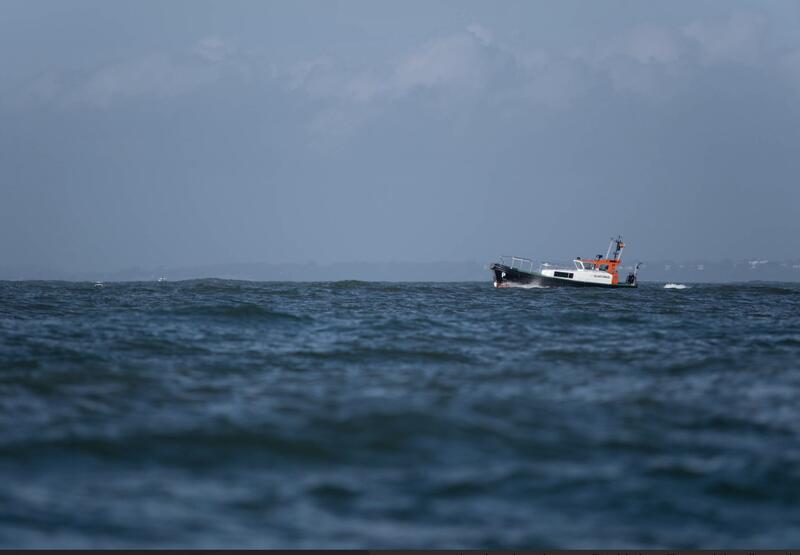

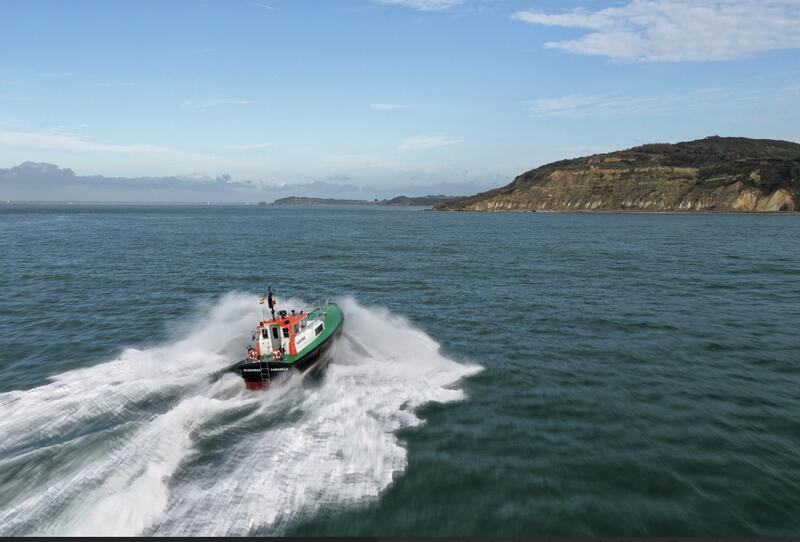

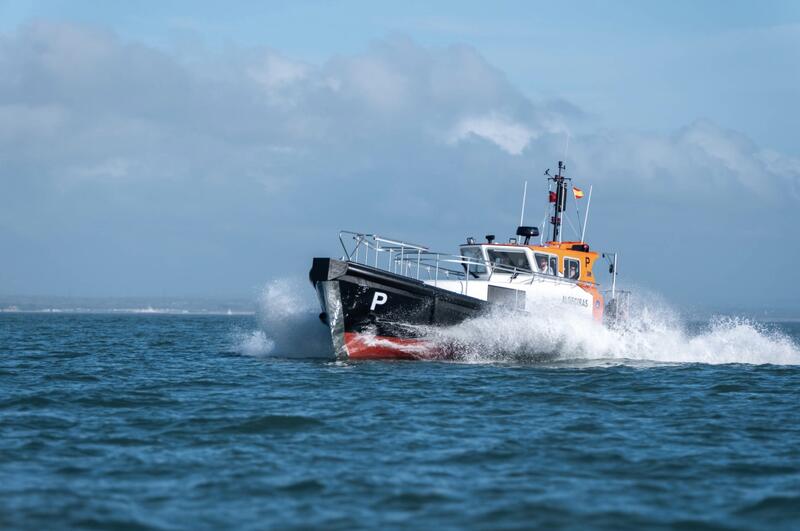

The HN-42 Pilot Boat is built today by Absolute Marine using the famous Nelson hull design. This makes the HN-42 a very capable vessel and is proven in operation with pilot services around the world. With room for four persons on board, the HN-42 is noted for its exceptionally soft ride, excellent handling in difficult sea conditions and for the predictable handling during ship boardings.

Specifications

Construction

PROVEN HALMATIC NELSON HULL

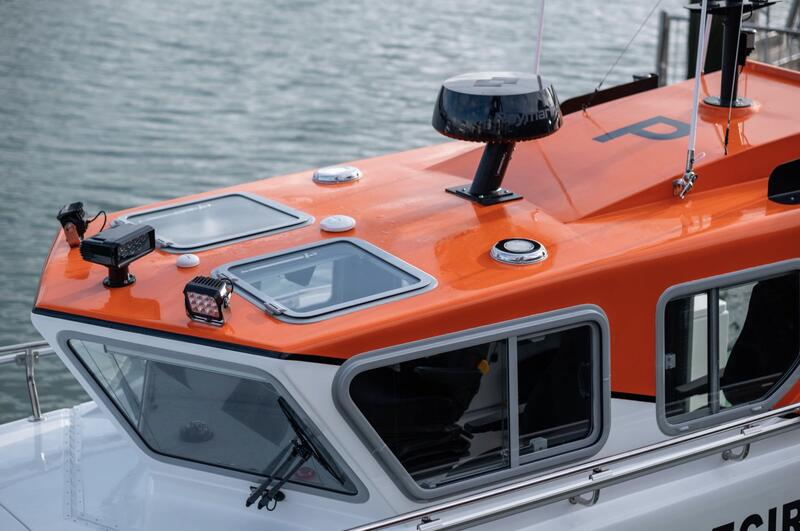

FLOATING WHEELHOUSE
TWIN ENGINES
ROBUST COMPOSITE CONSTRUCTION
OPTIMISED PILOT TRANSFER DECK
RINA CERTIFICATION / WORKBOAT CODE 3

The HN-42 Pilot Boat is built today by Absolute Marine using the famous Nelson hull design. This makes the HN-42 a very capable vessel and is proven in operation with pilot services around the world.

The HN-42 is noted for its exceptionally soft ride, excellent handling in difficult sea conditions and for the
predictable handling during ship boardings. They are built to Classification Society-approved drawings and are equipped to comply with the customer’s local flag approvals.

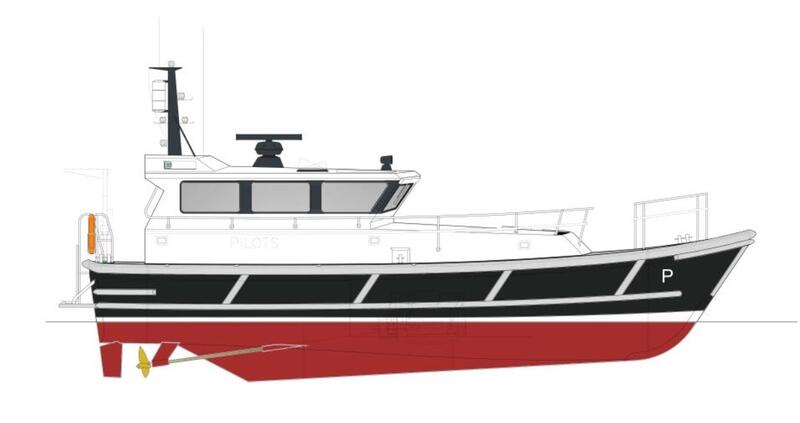

MAIN CRITERIA
Length Overall (LOA): 12.80m
Length On Water Line (LWL): 11.45m
Beam: 4.00m
Draft: 1.20m
Displacement: 15 Tonnes (Approx)
Air Draft (mast down): 3.38m
Fuel Tank Capacity: 2,500ltrs (Approx)
Design & Build Standard: Rina Certification

SUMMARY SPECIFICATION DETAILS

HULL & DECK COLOURS
Hull – Black
Deck – White
Superstructure – White
Non-slip deck – Painted
Antifouling Paint – Crimson
Boot-top paint – White

NOTE:
Other optional items and equipment are available on request.

Equipment

DECK EQUIPMENT
• MOB davit
• 3 – Stainless steel bollards
• 2 – Fairleads, foredeck
• Mast in black powder coat finish

GENERAL
• Echomax Radar Reflector
• Anchor & Chain
• 6 mooring warps
• Magnetic Compass
• Manual & electric bilge pumping
• Bilge water level alarm system

Navigation Equipment

NAVIGATION SYSTEMS
• Multi-Function Display - 4” Screen - Wind, Speed, Depth & Temp
• VHF – DVC
• AIS700 - Class B with splitter
Note: Navigation system options are available, subject to customer requirements (priced separately)
Fire detection/fighting
• Fire detection system
• Portable fire extinguishers as appropriate
• Automatic engine room fire extinguishers
• Fire Fighting system including pump, deck hydrant, hose

Engine(s)

Engine options available, *including Volvo, Nanni, Caterpillar
*Note: other engine types are subject to compatibility (priced separately)
Conventional shafts and rudders
Heavy duty P brackets and contra rotating nickel aluminium bronze propellers
Separate fuel tanks for each engine
Inspection lids for tank cleaning
Each engine has its own primary and secondary fuel filter
Single station hydraulic steering

Electrics

Electrical (24V DC)
2 x Batteries for engine starting
4 x Batteries providing power for domestic equipment
Systems control/ monitored by CZone digital switching via 7inch display
All battery circuits are individually isolated with an emergency parallel link between engines
Horn
Navigation lights
Pilot Lights
Deck Lighting
LED overhead interior lights
Chart light
12-volt power socket
Pantograph wipers
Screen washers
Electrical (AC)
Shore Power Connection
Shore power lead
Battery Charger
4 x AC power sockets

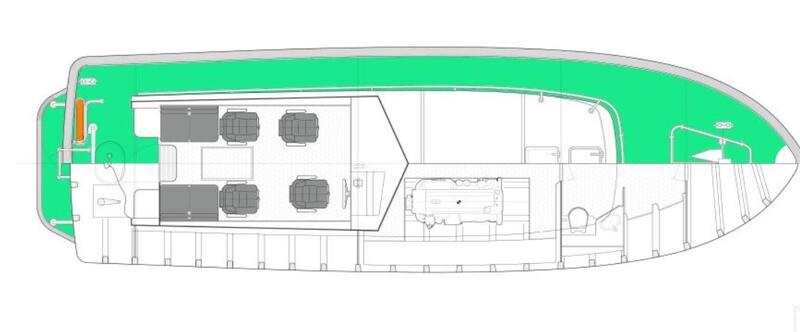

Interior Fit-Out – Wheelhouse
Helm to starboard side
1 x Helm seat
3 x Crew seat
2 x Bench seats
